Touch Screen Moisture Analyzer

4.3 inches high resolution TFT colored capacitive touch screen.
Fast halogen heating for fast, precise and reliable results.

INQUIRY

Description

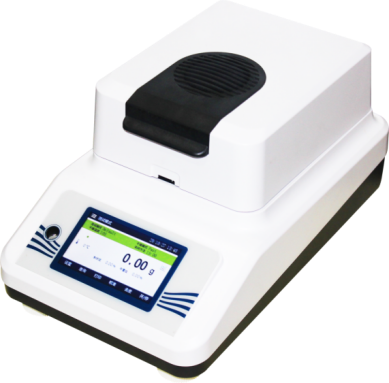

TSF Series Touch Screen Moisture Analyzer

Features:
● 4.3 inches high resolution TFT colored capacitive touch screen.
● The heat-insulating load cell technology is used to prevent the influence of the accuracy of the weighing process during the heating process.
● Fast halogen heating for fast, precise and reliable results.
● The Halogen drying method moisture analyzer can test the free water content of chemical raw materials, grain, mineral, biological product, food, pharmaceutical raw materials, paper, textile raw materials, etc.

Specifications:
Model	TSF-10A	TSF-50A-1	TSF-50A-5	TSF-100A-1
Weighing Range	10g	50g	50g	100g
Readability	10mg	1mg	5mg	1mg
Repeatability (3g samples)	0.5%	0.2%	0.3%	0.3%
Minimum Sample Amount	0.5g
Advised Sample Amount	3-10g
Heat up time	1-99 minutes, 1 minute interval
Real-time Curve	Moisture%, Weight, Time
Terminal Control	Timing/Automatic
Heating Temperature	50-160°C, 1°C interval
Display Content	Moisture%, Solid%, Weight, Temperature, Time, Drying mode, Real-time Curve
Heating Source	Halogen Lamp
Heating Time	30 minutes
Drying Mode	Standard heating/Fast heating
Calibration	Weighing (external weight calibration) Temperature (special temperature equipment, factory calibrated)
Display	4.3-inch touch screen
Output	USB drive, USB host, Bluetooth (optional)
Ambient Temp.	10-30°C
Ambient Humidity	≤75%
Pan Size	80mm
Dimension/N.W.	210x340x180mm/3kg
Shipping size/G.W.	380x530x340mm/5kg
Standard Accessaries	Calibration Weight, Power Cord, Manual
