Moisture Analyzer

Item No.: DSH Series
The high precision heat insulation type sensor makes the temperature for data acquisition reliable. The use of halide torch for heating and curing make warming more rapidly and test time shorter.
INQUIRY
Description

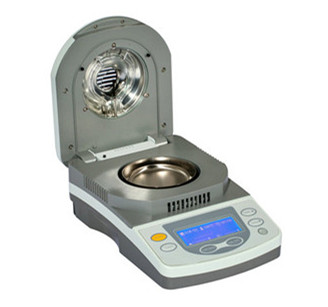

DSH Series - Halogen Drying Method Moisture Analyzer
Features:
1. The super high resolution back window matrix liquid crystal display (LCD), making it easier to operate in the dark place, and the user will have a more comfortable vision.
2. Touch-tone chain plate makes the operation easier.
3. The high precision heat insulation type sensor makes the temperature for data acquisition reliable.
4. The use of halide torch for heating and curing make warming more rapidly and test time shorter.
5. In the process of test, the dry state can be directly confirmed to speculate the finish time.
6. It is equipped with automatic peeling function. it can measure immediately and continuously, and also measure accurately through the zero drift correction.
7. The Halogen drying method moisture analyzer can test the free water content of chemical raw materials, grain, mineral, biological product, food, pharmaceutical raw materials, paper, textile raw materials, etc.
Specifications:
Model DSH-10A DSH-50A-1 DSH-50A-5 DSH-50A-10 DSH-100A-1 DSH-100A-5 DSH-100A-10
Weighing Range 10g 50g 50g 50g 100g 100g 100g
Readability 10mg 1mg 5mg 10mg 1mg 5mg 10mg
Weighing Repeatability 0.05g 0.005g 0.005g 0.05g 0.005g 0.005g 0.05g
Advised Sample Amount 3-5g
Heat up time 1-99minutes, 1 minute interval
Temperature Program Standard
Terminal Control Timing, Automatic
Heating Temperature Range 50-180°C
Showing Content Moisture%, Solid%, Weight, Time, Data etc
Heating Source Halogen Lamp
Pan Size 100mm
Dimension 265x160x150mm
Net Weight 5kg
Package Size 530x380x340mm
Gross Weight 6kg
Included Accessaries:
1.Calibration Weight
2.Weight Plier
3.Scale Plier
4. Pan
5.Pan Support
6.Power Cable
