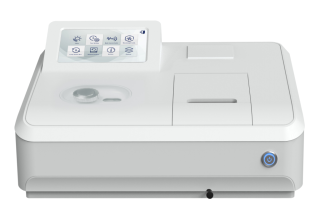

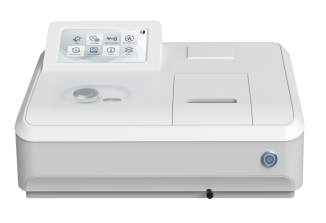

Single Beam Spectrophotometer
Item No.: IT-100
The instrument has basic functions of photometric analysis and quantitative analysis. With optional PC software, it expands the applications, such as spectral scanning, kinetics, DNA/protein analysis, multi-wavelength test, etc.
Description
IT-100 Series Single Beam Spectrophotometer
| Features: | ||
| ● 7-inch touch screen and windows graphic interface. | ||
| ● The instrument has basic functions of photometric analysis and quantitative analysis. | ||
| ● In-house powerful storage capacity, which can store 2000 data and 97 working curves. | ||
| ● Optional accessories: Bluetooth printer, built-in printer, PC software etc. | ||
| Specifications: | ||
| Model | IT-100V | IT-100U |
| Optical System | Single Beam | |
| Monochromator | C-T monochromator, Blazed Holographic Grating 1200 lines/nm | |
| Wavelength Range | 320-1020 nm | 190-1020 nm |
| Spectral Bandwidth | 4nm | |
| Wavelength Setting | Manual | |
| Wavelength Accuracy | ±2nm | |
| Wavelength Repeatability | ±1nm | |
| Photometric Accuracy | ±0.5%T, ±0.004A(0-0.5A), ±0.008A(0.5-1A) | |
| Photometric Repeatability | ±0.5%T, ±0.004A(0-0.5A), ±0.008A(0.5-1A) | |
| Photometric Stability | ±0.15%T, ±0.002A(0-0.5A), ±0.004A(0.5-1A) | |
| Photometric Range | 0-200%T, -0.3~3A | |
| Stray Light | 0.1%T | |
| Stability | 0.002A (500nm, 3min) | |
| Work Mode | T, A, C | |
| Display | 7-inch Touch Screen | |
| Light Source | Tungsten Lamp | Deuterium & Tungsten Lamp |
| Detector | Silicon Photodiode | |
| Cuvette Holder | 10mm manual 4-cell holder | |
| Output | USB(A) for data transfer, USB(B) for PC software | |
| Power | AC 110-220V 50-60Hz | |
| Shipping Size | 700*680*340mm | |
| Gross Weight | 20kg | |
| Standard Accessaries | 10mm glass cuvette x 4, 10mm quartz cuvette x 2 (UV), Power cord, Manual | |
