P616 Portable Conductivity/DO Meter

Item No.: P616
Large LCD screen with controllable white backlight.
Built-in microprocessor chip has Intelligent functions such as auto calibration, ATC, data storage, function settings, auto diagnosis, auto power off, and undervoltage prompt, etc.
INQUIRY
Description
P616 Portable Conductivity & DO Meter
Features:
1. Large LCD screen with controllable white backlight.
2. Built-in microprocessor chip has Intelligent functions such as auto calibration, ATC, data storage, function settings, auto diagnosis, auto power off, and undervoltage prompt, etc.
3. Auto recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA, and China.
4. Adopt advanced conductivity measurement technology, one point calibration of conductivity electrode with constant K=1 can meet the measuring accuracy requirements for test 0.5μ S/cm ~ 200mS/cm.
5. Can switch between conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
6. Conductivity mode has the function of non-linear temperature compensation for high purity water.
7. DO mode has functions of ATC, auto salinity compensation and manual pressure compensation.
8. New structure polarographic DO electrode can measure temperature, salinity and dissolved oxygen simultaneously, equipped with special DO electrode calibration sleeve, only need 3~5 minutes for polarization.
9. Combined diaphragm cap makes it extremely convenient to replace the sensitive membrane just by screwing the new cap to the electrode.
10. Grade IP57 and equipped with suitcase for outdoor purpose.

Specification:
Conductivity Measuring range Conductivity:
(0.00~19.99)μS/cm
(20.0~199.9)μS/cm
(200~1999)S/cm
(2.00~19.99)mS/cm
(20.0~199.9)mS/cm
TDS:(0~100)g/L
Salinity:(0~100)ppt
Resistivity:(0~100)MΩ·cm
Resolution 0.01/0.1/1μS/cm; 0.01/0.1 mS/cm
Accuracy ±1.0% FS, Overall:±1.5% FS
Temp. compensation range (0~100)(Auto/manual)
Electrode constant 0.1 / 1 / 10 cm-1
DO Measuring range (0 ~ 20.00) mg/L(ppm), (0 ~ 200.0)%
Resolution 0.1/0.01 mg/L(ppm), 1/0.1 %
Accuracy Electrode: ±0.10 mg/L, Instrument: ±0.40 mg/L
Response time ≤30s (25, 90%response)
Residual current ≤0.1 mg/L
Temperature compensation (0 ~ 45) (auto)
Salinity compensation (0 ~ 45) ppt (auto)
Pressure compensation (66 ~ 200) kPa (manual)
Automatic calibration Air saturated by water, water saturated by air
Electrode type Polarographic
Other Technical Parameters Data storage 200 sets
Power Two AA batteries (1.5V x2)
Shipping size/G.W. (340×270×50)mm/1Kg
Working Condition Ambient temperature 5~35 (0.01grade)
Ambient humidity ≤85%
IP grade IP57 Dustproof and waterproof

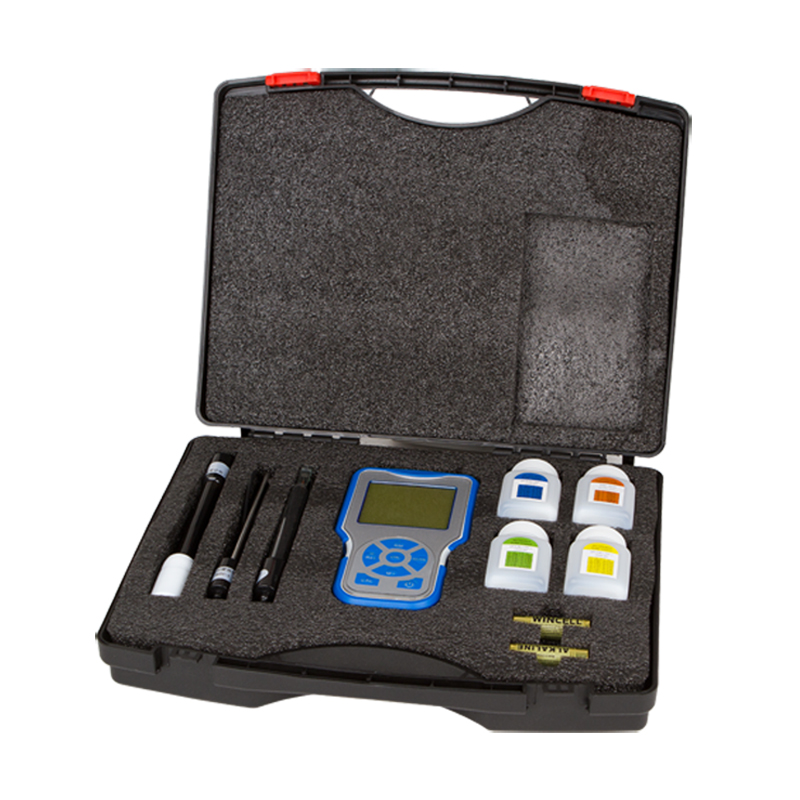

Meter Kits 1) Conductivity & DO meter
2) Conductivity electrode
3) Temperature electrode
4) DO electrode
5) DO filling solution
6) Membrane cap
7) Cathode polishing paper
8)  Suitcase
